WINSTON Terminal connector for TSWB-LYP50AH

Winston LFP50-CON

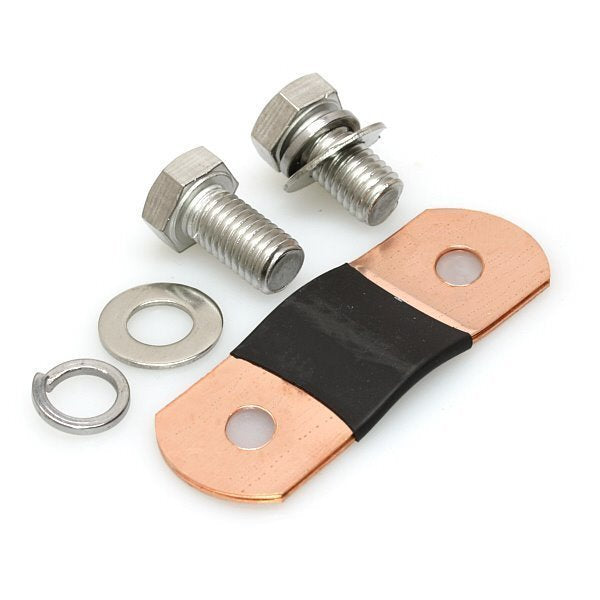

Flexible connector for Winston TSWB-LYP50AH and TSWB-LYP40AH cells. The connector is made of multilayered copper material and includes screws and washers.
A crucial feature of the original connecting connector is its flexibility, especially when used with battery cells arranged in mobile applications (various material handling machines, electric vehicles, etc.).

When using non-original connectors (for example, made from a single piece of sheet metal), there is a risk of damage to the internal connecting terminals of the cell during vibrations and impacts.

How to calculate the maximum current for a given terminal connector?
The important parameters for the calculation are the cross-section of the terminal connector × the width of the terminal connector.

Recommended current load per 1 mm²:

• 4 A / 1 mm² - continuous (permanent)
• 6 A / 1 mm² - short-term (up to 1 hour)
• 8 A / 1 mm² - peak (max. 1 minute)

The load capacity of the terminal connector is not linear! The load capacity decreases with increasing cross-section of the terminal connector.

BASIC SPECIFICATIONS

Connector pitch: 48 mm
Hole Diameter: 6 mm
Dimensions: 73 × 22 mm
Compatibility: Winston TSWB-LYP50AH, TSWB-LYP40AH, LFP050AHA, LFP040AHA
Material: copper
