WINSTON Terminal connector for TSWB-LYP100AHA (Tall)

Winston LFP100-CON

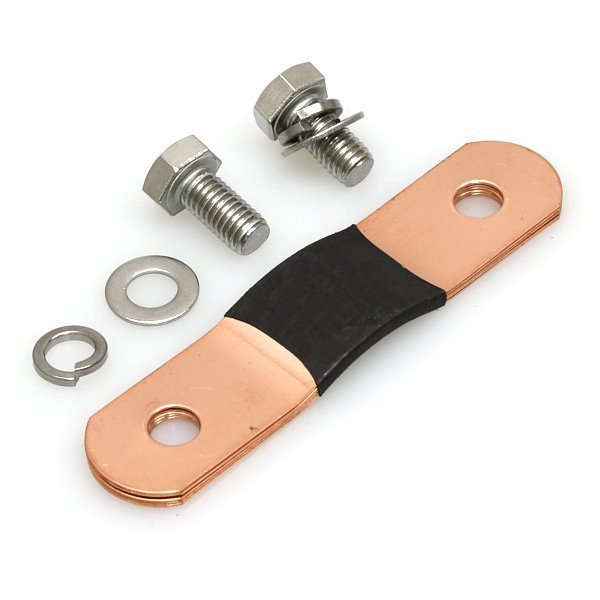

Flexible connector for Winston LFP100AHA(A) - TALL cells. The connector consists of multilayered copper material. Including screws and washers.
A very important feature of the original connection connector is its flexibility. Especially when used with battery cells arranged in mobile applications (various machines for material handling, electric vehicles, etc.).

When using non-original connectors (for example, made from a single piece of sheet metal), there is a risk of damaging the internal connection terminals of the cell due to vibrations and impacts.

How to calculate the maximum current for a given terminal connector?

Important parameters for the calculation are the cross-section of the terminal connector × the width of the terminal connector. See recommended current load per 1 mm²
4 A / 1 mm² - continuous
6 A / 1 mm² - short-term (up to 1 hour)
8 A / 1 mm² - peak (max. 1 minute)

The load capacity of the terminal connector is not linear! The load capacity decreases with increasing cross-section of the terminal connector.

BASIC SPECIFICATIONS

Type of accessory: terminal connector
Compatibility: TSWB-LYP100AHA - TALL, LFP100AHA(A) - TA
