WINSTON Terminal connector for TSWB-LFP313AHA, long

Winston LFP313-CON

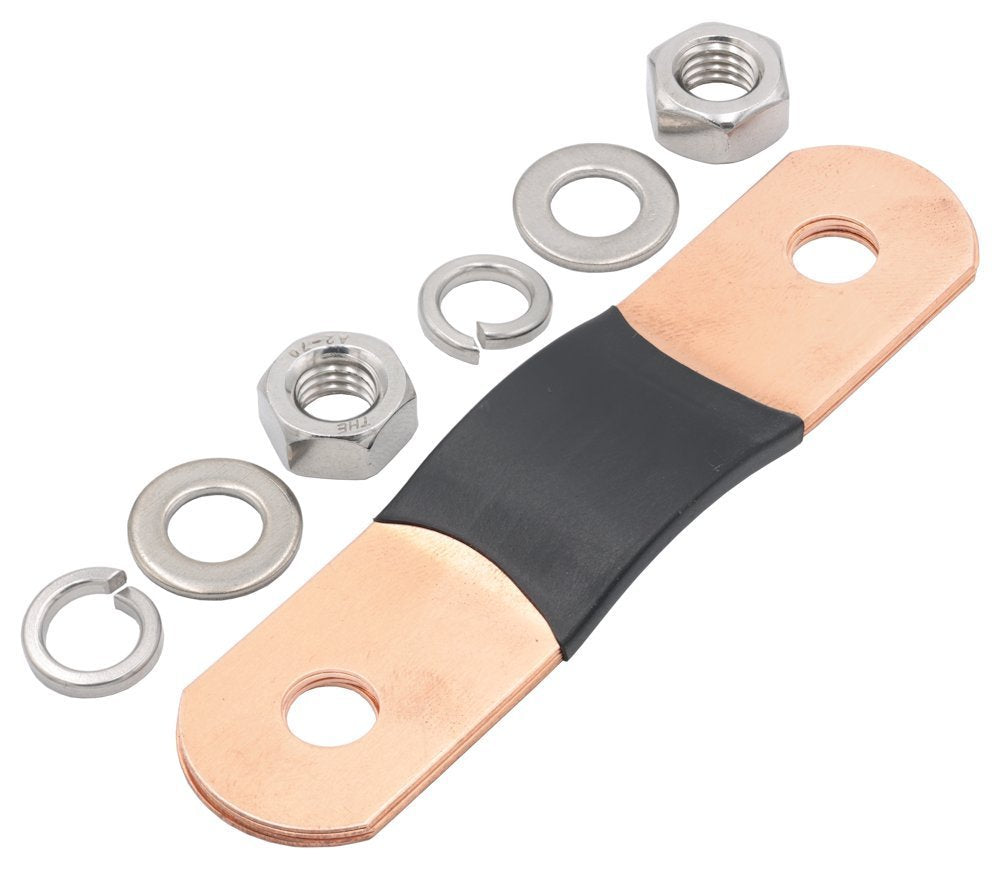

Flexible connector for Winston TSWB-LFP313AHA cells. The connector is made of a 6-layered copper material. Including nuts and washers.
A crucial feature of the original connecting connector is its flexibility, especially when used with battery cells arranged in mobile applications (various material handling machines, electric vehicles, etc.).

When using non-original connectors (for example, made from a single piece of metal), there is a risk of damaging the internal cell connection tabs during vibrations and impacts.

How to calculate the maximum current for a given terminal connector?
The important parameters for the calculation are the cross-section of the terminal connector × the width of the terminal connector.

Recommended current load per 1 mm²:

• 4 A / 1 mm² - continuous (permanent)
• 6 A / 1 mm² - short-term (up to 1 hour)
• 8 A / 1 mm² - peak (max. 1 minute)

The load capacity of the terminal connector is not linear! The load capacity decreases with increasing cross-section of the terminal connector.

BASIC SPECIFICATIONS

Connector pitch: 70 mm
Hole Diameter: 8 mm
Dimensions: 96 × 22 mm
Compatibility: Winston TSWB-LFP313AHA
Material: copper
