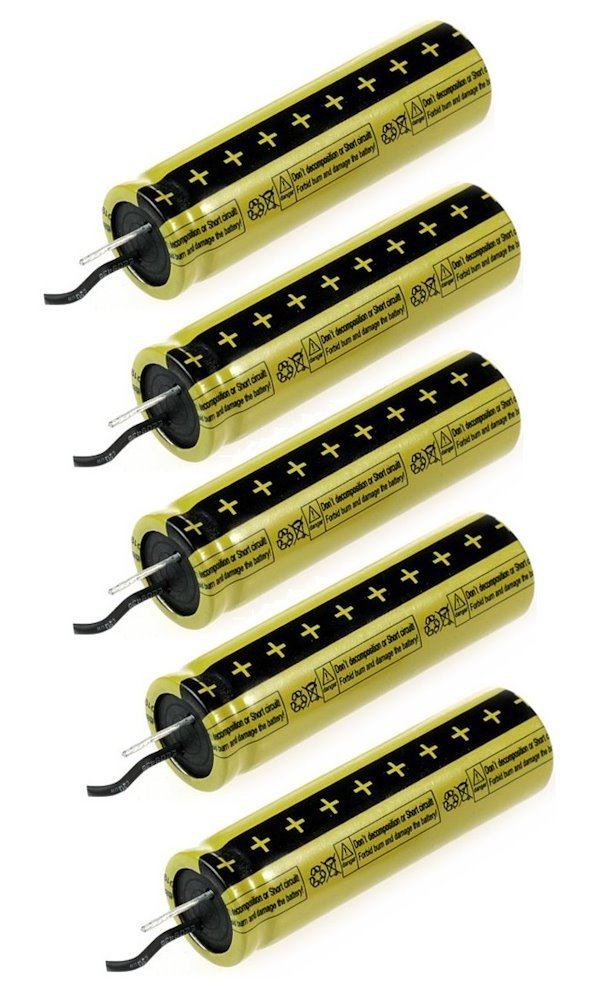

LTO1865 Rechargeable Cell: 2.4V 1300 mAh (Lithium Titanate), pack 5pcs

LTO18650 1300 mAh 5 pcs

Package contains 5pcs of cells.

Professionally manufactured LTO (Lithium-titanate-oxide) cell with a capacity of 1300 mAh. The advantage of these cells is their lower operating voltage (resulting in greater safety) and very fast charging and discharging. Data shows that these batteries can be safely charged at speeds greater than 5 C (6.5 V), meaning the battery can be charged in less than 10 minutes.

Safety and Stability
LTO offers performance and chemical stability benefits. LTO-based batteries have lower voltage: between 2.5 V and 1.9 V. However, the lower operating voltage brings significant safety advantages.

Wide Operating Temperature Range and High Efficiency
LTO-based batteries also have a wider operating temperature range and charging efficiency exceeding 98 %.

Performance at Low Temperatures
LTO-based batteries have much better performance at low temperatures compared to carbon batteries.

High Lifespan
The large cycle life and high-speed capabilities of LTO-based batteries also bring unique advantages in applications where maximum cycle life is required.

Advantages:

• Stability during high current discharges - support up to 10 C continuous, 20 C peak discharge
• Support for high-speed charging - charging currents up to 5C
• Discharge with a long linear voltage level (2.60 V to 2.30 V)
• Pouch cell design for easy integration
• Minimal heating or heat dissipation during operation

BASIC SPECIFICATIONS

Type: LTO
Capacity: 1300 mAh
Rated Voltage: 2.4 V
Operating Voltage: 1.85–2.75 V
Max. Cell Voltage: 2.8 V
Cell Balancing Voltage: 2.75 V
Discharge Voltage: 1.85 V
Min. Cell Voltage: 1.5 V
Optimal Discharge Current: < 1.3 A (1 C)
Max. Discharge Current: < 13 A (10 C)
Max. Peak Discharge Current: < 26 A (20 C, up to 10 seconds)
Optimal Charging Current: < 1.3 A (1 C)
Max. Charging Current: < 6 A (5 C)
Internal Resistance: < 20 mΩ
Operating Temperature during Discharge: -25 to +55 °C
Operating Temperature during Charging: -15 to +45 °C
Dimensions: 65 × 19 × 19 mm
Weight: 39 g
