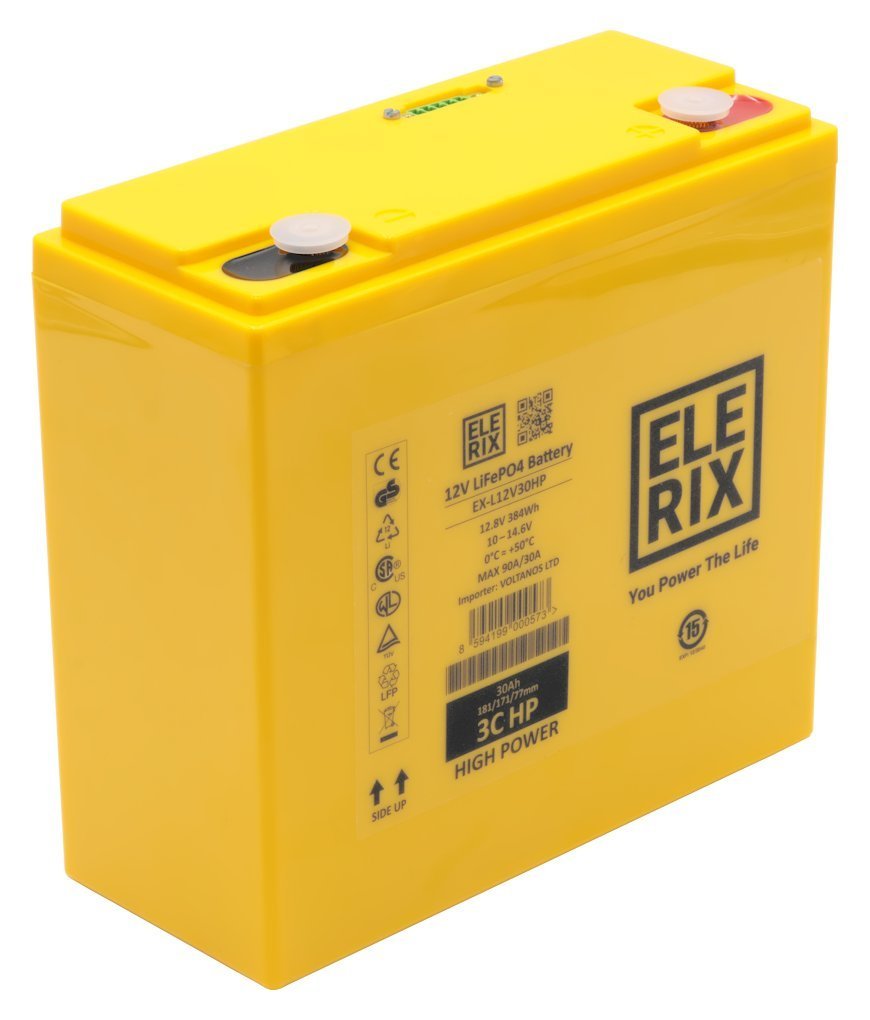

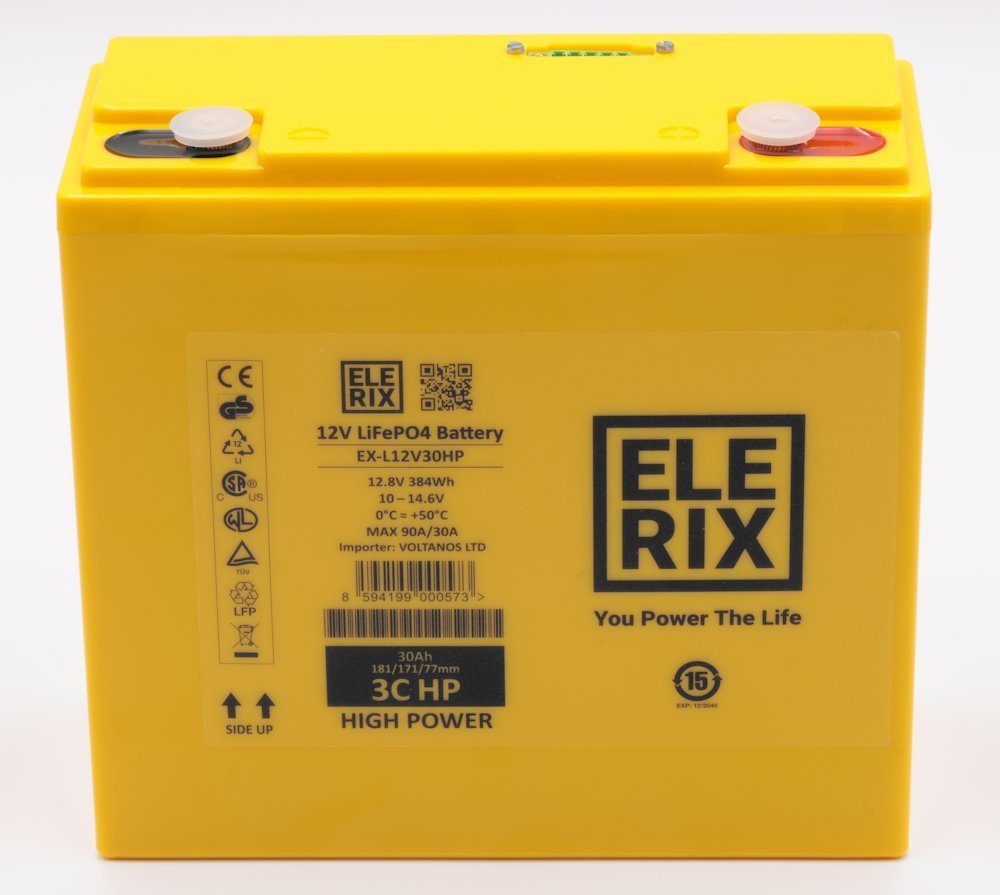

ELERIX battery 12V/30Ah LiFePO4 Prismatic, 3C
ELERIX EX-L12V30HP

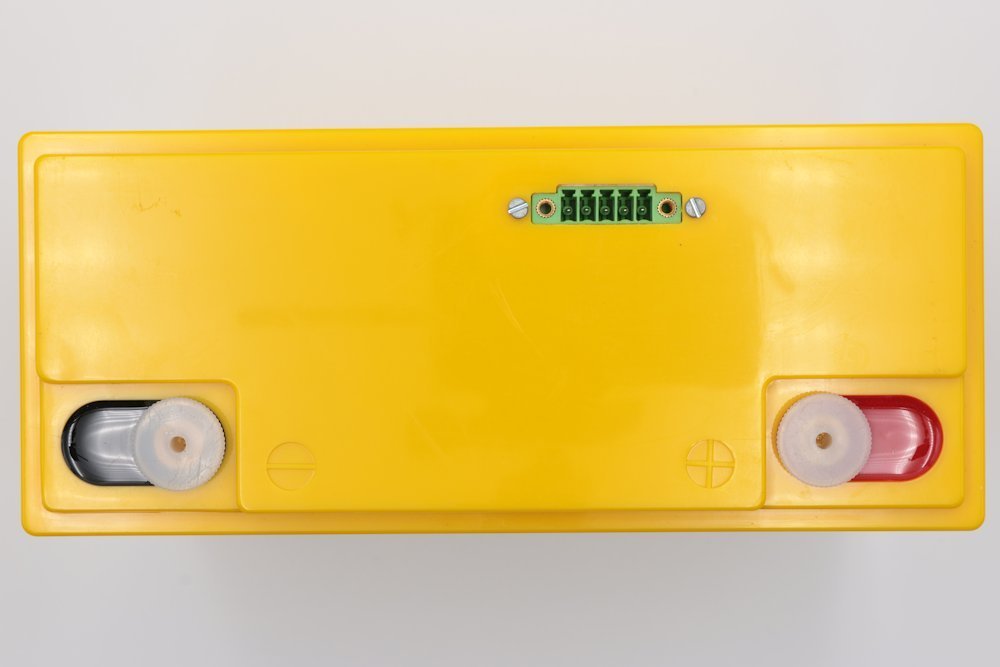

Lithium LiFePO4 battery ELERIX 12 V (30 Ah) with a 5-pin service connector for connecting an external balancer, BMS or monitoring device. To achieve higher capacity or voltage, batteries can be connected in parallel or in series.
Features:
- Lithium iron phosphate (LiFePO4) technology.
- Does not contain any toxic substances, poisons, corrosives or acids.
- Completely safe – Does not burn, does not explode, does not contain liquid electrolyte.
- Low self-discharge (< 3% per month).
- Does not contain a balancing system - Cells assembled according to precise capacity, operating voltage must be monitored as a whole.
- Charging maximum 1C and discharging maximum 3C.
BASIC SPECIFICATIONS
Technology: lithium (LiFePO4)
Nominal voltage: 12.8 V
Capacity: 30 Ah
Operating voltage range: 12.0 to 14.0 V
Operating temperature range: 0 to +50 °C
Terminal screw tightening torque: 4 Nm
Dimensions: 181 × 170 × 77 mm
| Parameter | Value |
|---|---|
| Brand | |
| Type specification | Battery |
| Manufacturer | ELERIX |
| Charging / Discharging | |
| Max. charging current: | 30 A (1C) |
| Standard charging current: | 15 A (0.5C) |
| Max. discharge current: | 90 A (3C) |
| Standard discharge current: | 15 A (0.5C) |
| Voltage | |
| Minimum voltage: | 10 V |
| Maximum voltage: | 14.6 V |
| Operating voltage: | 12–14 V |
| Battery | |
| Battery capacity: | 30 Ah |
| Nominal energy: | 384 Wh |
| Energy density: | 174.5 Wh/kg |
| Internal resistance (max.): | 0.8 mΩ |
| Terminal type: | M6 |
| Tightening torque (max.): | 4 N/m |
| Physical properties | |
| Width: | 181 mm |
| Height: | 170 mm |
| Depth: | 77 mm |
| Weight: | 2.2 kg |
